Background

• Our project was upgraded to vue@2.7.16.
• It is challenging to upgrade old vue@2 projects to vue@3.
• vue.js devtools@5.3.4 is no longer maintained.
• vue.js devtools@5.3.4 does not support common features like the new setup state.
• vue.js devtools@6.6.3 crashes immediately on vue@2 projects.
• Due to historical and business reasons, the project has poor page performance, causing vue.js devtools@5.3.4 to freeze in certain scenarios.
• Chrome now requires extensions to upgrade to manifest@v3.

Solution: Forked a new devtools from 5.3.4 and adapted it for the complex legacy pages.

Features

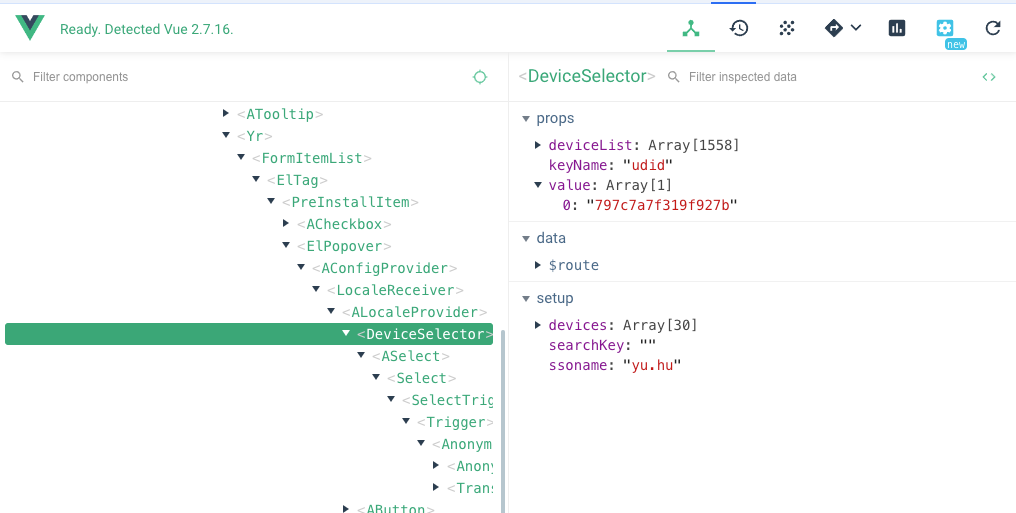

• Support for displaying setup data.

• Support for pinia data.

• Upgraded to manifest v3.
• Devtools project upgraded to webpack@5.
• Developed with vue@2.7.16.
• Support for response-based communication mechanisms.

Issue: Page Lag on Entry

Root Cause

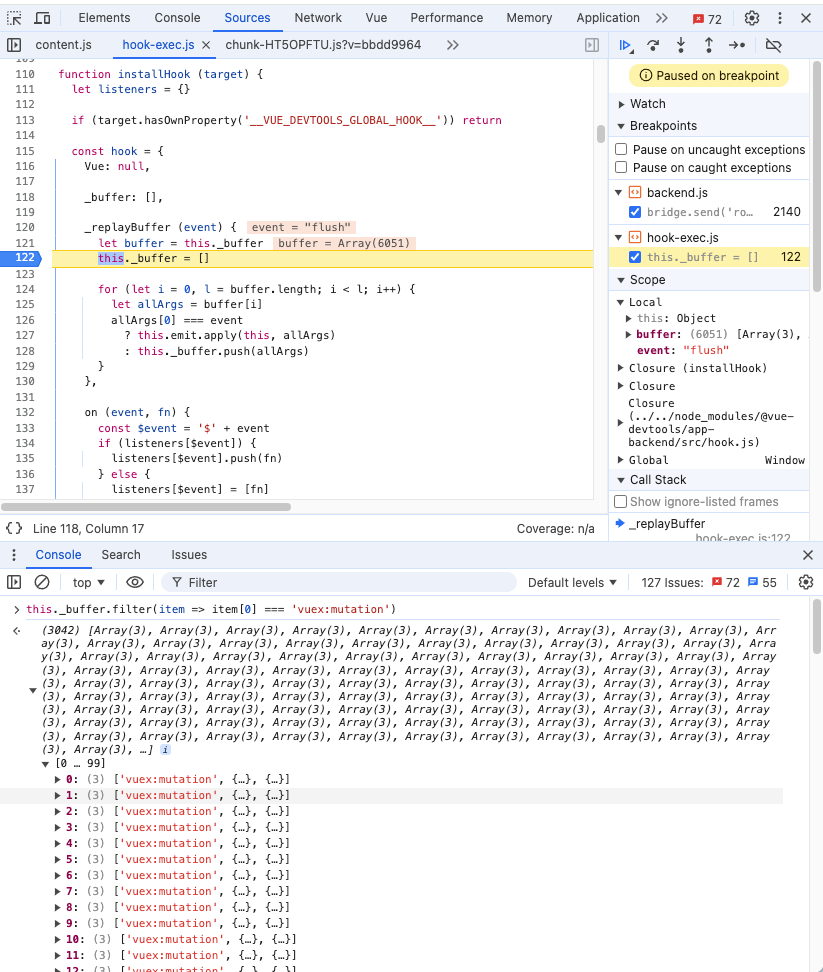

Upon entering the page, thousands of vuex:mutation events are generated. Each vuex event serializes the store and sends it to backend.html.

Solution

Since we mostly check the latest state in vuex and rarely use the time-travel feature, we throttled vuex:mutation events as shown:

// devtools/packages/app-backend/src/vuex.js

+   const onMutation = debounce((...args) => this.onMutation(...args), 500); // Throttle onMutation as time-travel is not needed
    hook.on('vuex:mutation', onMutation);

Side Effect: A large number of vuex changes in a short time will record only 1-2 store snapshots.

Issue: Lag When Clicking Options

Root Cause

• Clicking an option updates the router query, triggering a replace operation.

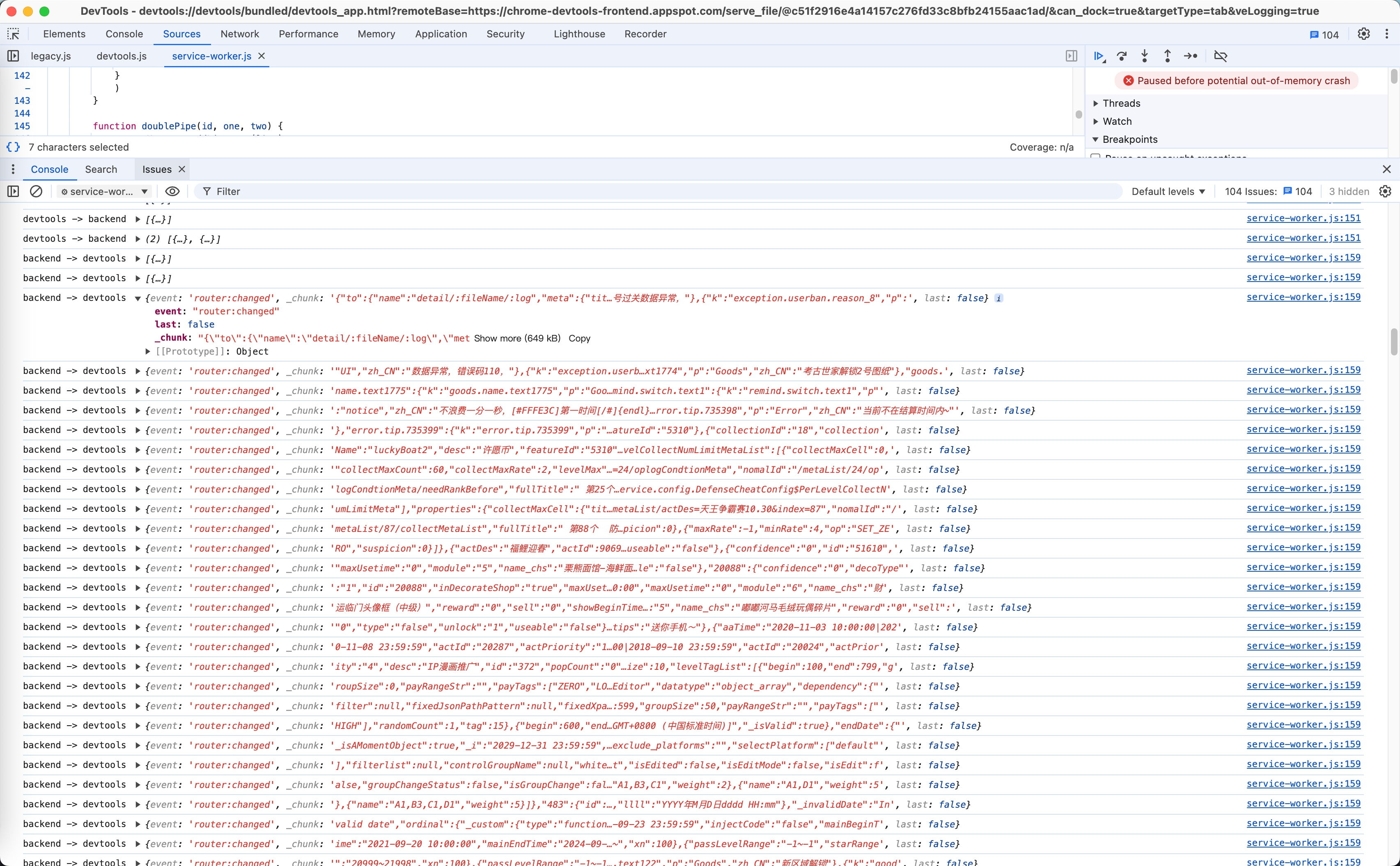

• This triggers the router:changed event.
• The event serializes the to parameter in afterEach.
• The to data contains a significant amount of page data.
• The router toggle functionality is ineffective.

Solution

The router feature is rarely used, and the toggle is usually off. Ensure the toggle works as expected:

// packages/app-frontend/src/index.js

  bridge.once('ready', version => {
    store.commit('SHOW_MESSAGE', 'Ready. Detected Vue ' + version + '.')
    bridge.send('events:toggle-recording', store.state.events.enabled)
+   bridge.send('router:toggle-recording', store.state.router.enabled) // Properly initialize router toggle
    ...

Issue: Lag During Frequent Operations

• Mouse movements cause page lag.
• The page contains thousands of components.

Root Cause

A large number of triggered events cause the component module to invoke a massive number of flush updates in a short time.

Solution

Use throttling to reduce the frequency of flush updates:

// devtools/packages/app-backend/src/hook.js
    hook.on('flush', () => {
      if (hook.currentTab === 'components') {
-        flush()
+        debounceFlush()
      }
    })

Side Effect: After interactions, the submodules under Component (data, props, setup, etc.) will only update after 300ms.

Issue: Lag When Selecting Simple Components

Some simple components cause page lag and devtools to crash when selected.

Root Cause

Component instances from $refs are included in computed, leading to fetching data from other components’ instances.

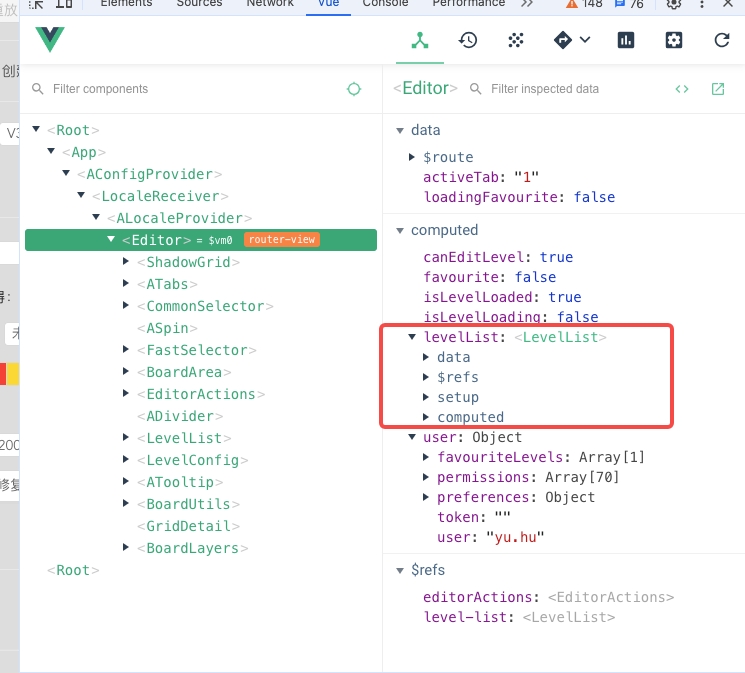

A large computed property in levelList caused devtools to crash.

This was due to the use of @Ref syntax in the class, as shown:

@Ref(‘level-list’) levelList!: LevelList

The implementation of @Ref is as follows:

/**
 * decorator of a ref prop
 * @param refKey the ref key defined in template
 */
export function Ref(refKey) {
    return createDecorator(function (options, key) {
        options.computed = options.computed || {};
        options.computed[key] = {
            cache: false,
            get: function () {
                return this.$refs[refKey || key];
            },
        };
    });
}

Solution

When collecting data in devtools, remove properties in computed that have the same name as those in $refs:

// devtools/packages/app-backend/src/index.js

+ if (def.cache === false && !Reflect.hasOwnProperty(def, 'set')) {
+   if (Object.values(instance.$refs).find(comp => comp === instance[key])) {
+     continue
+   }
+ }

Issue: Devtools Becomes Unresponsive After Some Time

• The Component tab in devtools becomes mostly unresponsive after some time.
• Restarting devtools resolves the issue.

Root Cause

Different environments in the extension have varying communication mechanisms. For vue devtools, communication primarily involves backend.js and devtool.js:

• backend.js: Executes in the host page (e.g., https://localhost).
• devtool.js: Executes in the devtools inspector page.

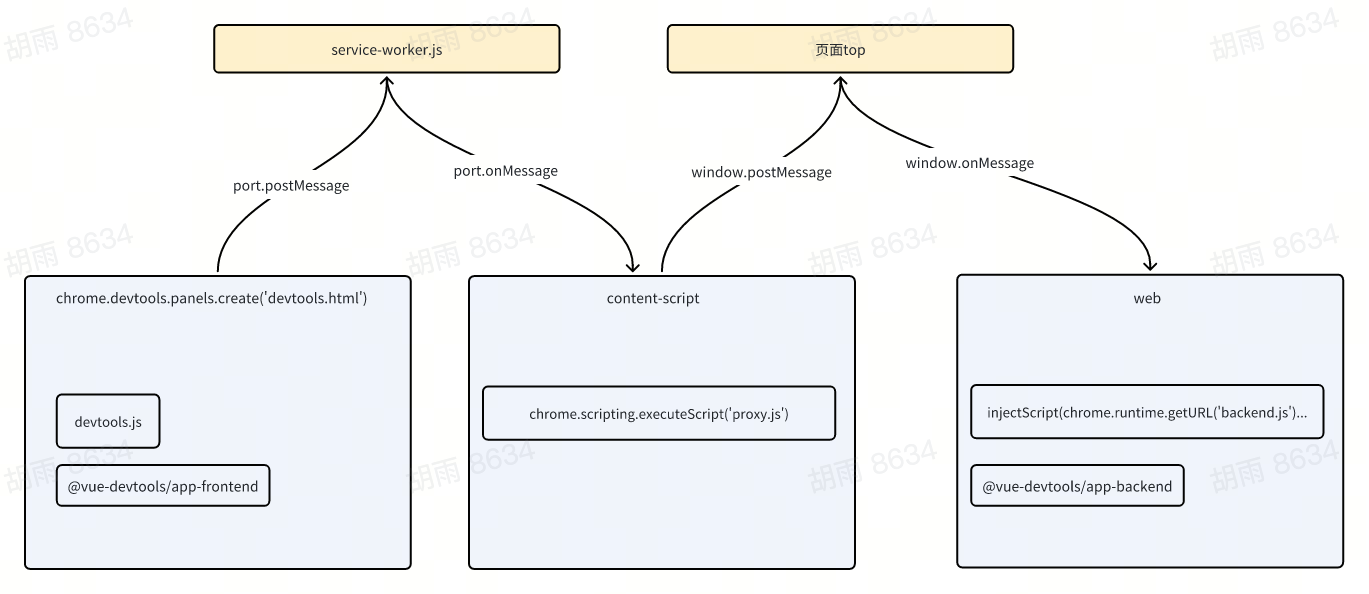

Communication flow:

Connection characteristics:

• Sending a single message involves 4 message transfers.
• A persistent connection exists between devtool and service-worker.
• Another persistent connection exists between content-script and service-worker.
• Ports frequently disconnect without error messages for debugging.

Solution

Due to port disconnections, devtools becomes unresponsive. The solution involves:

• Changing the message path to: web <=> content-script <=> devtools.html (3 steps).
• Replacing persistent connections with direct sendMessage transfers. This effectively switches from a TCP-like approach to a UDP-like approach.

Project Repository

https://github.com/kxxxlfe/devtools/releases
